Specificaties
| Kleur | Zwart |
| Bluetooth | Ja |
| Merk | Audac |
| PoE | Nee |
| Dante | Nee |
| RS232 | Nee |
WP225/B – Black version - EU-style standard
Highlights
- Elegant design to blend in with any environment
- Compatible with EU (80x80 mm) installation materials
- Signal transmission over twisted pair (CAT5E) or better cabling
- Signal transmission insensitive for interference and noise
Description

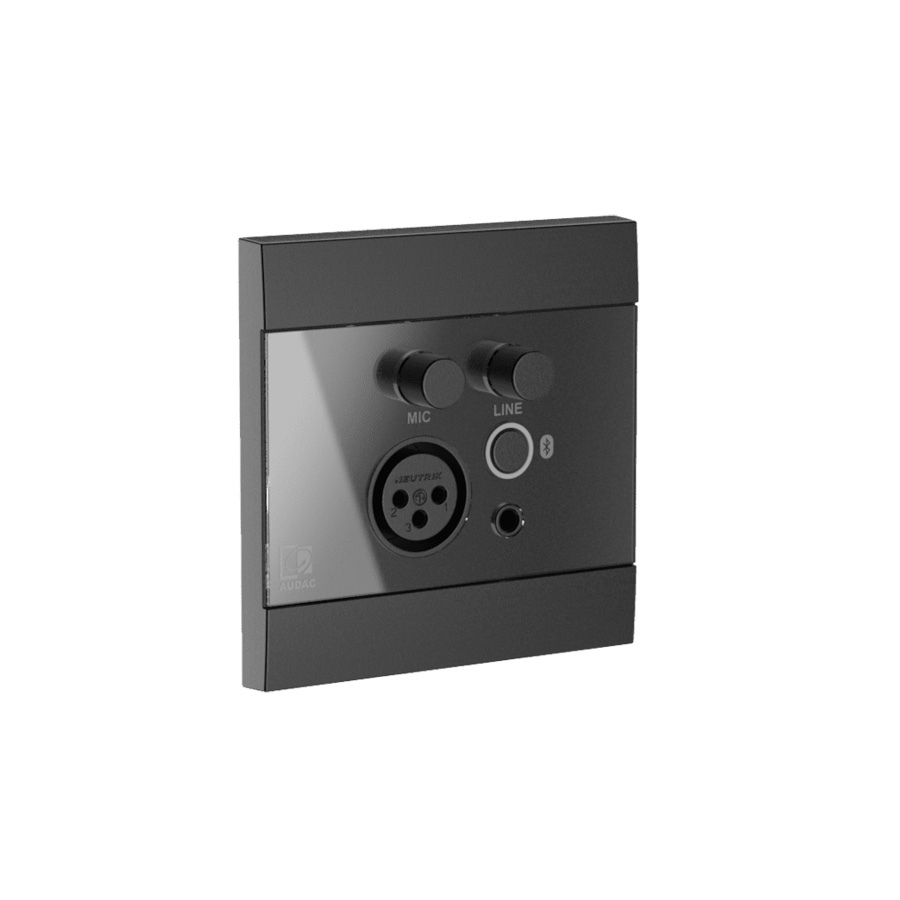

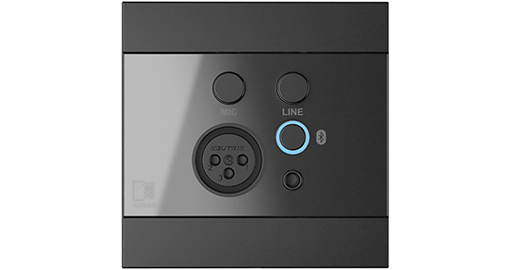

The WP225 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.
It also features a Bluetooth receiver and pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc...
The WP225 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.
Please note:
These in-output wall panels are designed for fixed installation applications and are not suitable for use with DJ mixing panel setups. They are intended for balanced audio connections and general-purpose signal distribution, not for high-level, dynamic signal processing typically required in DJ environments.
Applications
- Education
- Retail
- Bars & Restaurants
- Corporate
System specifications
| Property | Value |
|---|---|
| Outputs / Level | +12 dB |
| Outputs / Level | 0 dB |
| Inputs / Wall Panel / Type | 3.5 mm jack stereo line input connection |
| Inputs / Wall Panel / Type | XLR microphone input connection |

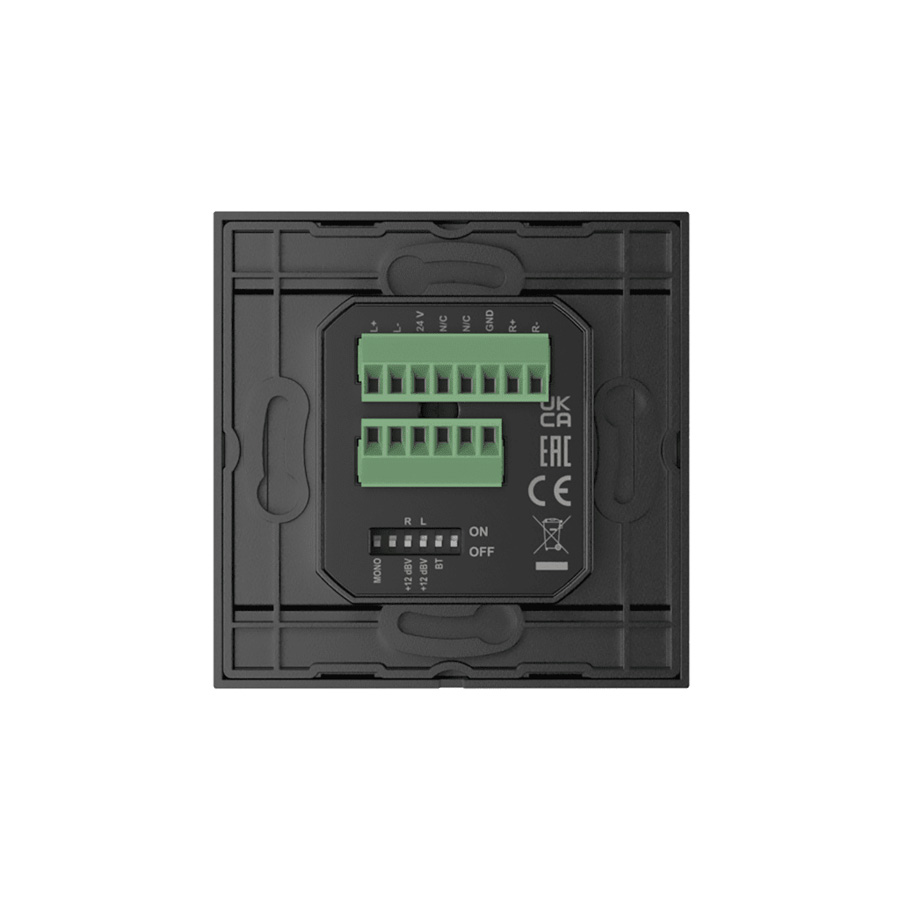

| Inputs / Wall Panel / Type | Mic & Line inputs on rear for permanent connections |
| Control | Individual input level control for Mic & Line |
| Control | Bluetooth pairing button with LED |
| Control | Phantom power (DIP switch on rear) |
| Control | Low-cut (Mic) enable / disable (DIP switch on rear) |
| Control | Output level +12 dBV enable / disable (DIP switch on rear) |
| Control | Bluetooth enable / disable (DIP switch on rear) |
| Control | Mono / Stereo (DIP switch on rear) |
| Connection | 3.5 mm jack input (Stereo line input) |
| Connection | Female XLR input connector (Microphone input) |
| Connection | 6-pin terminal block (3.81 mm pitch) input connection on rear (duplicated line & mic inputs) |
| Connection | 8-pin terminal block (3.81 mm pitch) output connection |
| Inputs / Wall Panel / Type | Bluetooth receiver (Version 5.0) |
Product Features
| Property | Value |
|---|---|
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) |
| Colours | Black (RAL9005) (WP225/B) |
| Colours | White (RAL9003) (WP225/W) |
| Front finish | Elegant ABS front panel with glass |
| Accessories / Optional / Surface mount Installation boxes | WB200 - Surface mount wall box for WP & NWP series |
| Accessories / Optional / Flush mount Installation boxes | Flush mount box for 45 x 45 mm wall panel - Solid wall - WB45SI/FS |
| Accessories / Optional / Flush mount Installation boxes | Flush mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG |
| Installation standard | Compatible with EU installation materials |
| Installation standard | 1-gang US standard (WP225) |
Product attributes
- Brand: AUDAC
Key features
- Warranty: 5 years
